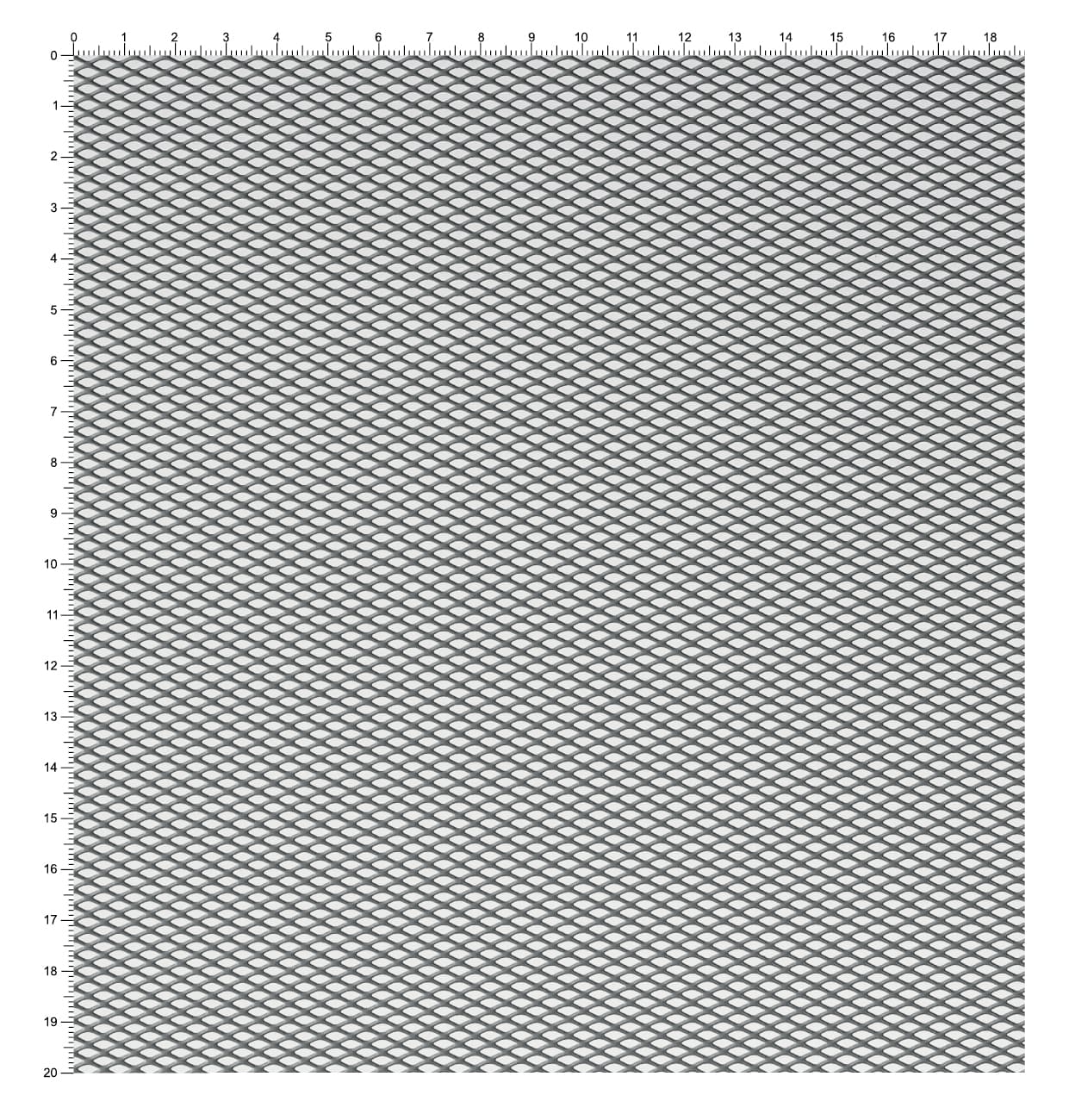

Expanded metal sheets with D6 mesh size can be used for various purposes including fences, security windows, ceiling panels, floor coverings, and filters. Additionally, they are preferred for structural support and decorative elements as well.
| Product Code SWD x LWD x T x SW (mm) |
Material | SWD Short Way (mm) |
LWD Long Way (mm) |
T Thickness (mm) |
SW Strand Width (mm) |
Weight (kg/m2) |
Open Area (%) |
Width x Length (mm) |
Stock Code |
|---|---|---|---|---|---|---|---|---|---|
| 3.00 x 6.00 x 0.50 x 0.80 | Aluminum | 3.00 | 6.00 | 0.50 | 0.80 | 0.700 | 49 | 1000x30.000 | ALU0306050810R |
| 3.00 x 6.00 x 0.50 x 0.80 | Aluminum | 3.00 | 6.00 | 0.50 | 0.80 | 0.700 | 49 | 1200x30.000 | ALU0306050812R |
| 3.00 x 6.00 x 0.50 x 0.60 | Aluminum | 3.00 | 6.00 | 0.50 | 0.60 | 0.550 | 60 | 1000x30.000 | ALU0306050610R |
| 3.00 x 6.00 x 0.50 x 0.60 | Aluminum | 3.00 | 6.00 | 0.50 | 0.60 | 0.550 | 60 | 1200x30.000 | ALU0306050612R |
| 3.00 x 6.00 x 0.50 x 0.50 | Aluminum | 3.00 | 6.00 | 0.50 | 0.50 | 0.450 | 67 | 1000x30.000 | ALU0306050510R |
| 3.00 x 6.00 x 0.50 x 0.50 | Aluminum | 3.00 | 6.00 | 0.50 | 0.50 | 0.450 | 67 | 1200x30.000 | ALU0306050512R |
| 3.00 x 6.00 x 0.50 x 0.70 | Mild Steel | 3.00 | 6.00 | 0.50 | 0.70 | 1.800 | 55 | 1000x15.000 | DKP0306050710R |
| 3.00 x 6.00 x 0.50 x 0.70 | Mild Steel | 3.00 | 6.00 | 0.50 | 0.70 | 1.800 | 55 | 1200x15.000 | DKP0306050712R |
| 3.00 x 6.00 x 0.50 x 0.70 | Galvanize | 3.00 | 6.00 | 0.50 | 0.70 | 1.800 | 55 | 1000x15.000 | GAL0306050710R |
| 3.00 x 6.00 x 0.50 x 0.70 | Stainless Steel | 3.00 | 6.00 | 0.50 | 0.70 | 1.800 | 55 | 1000x15.000 | PSL0306050710R |
| 3.00 x 6.00 x 0.50 x 0.70 | Mild Steel | 3.00 | 6.00 | 0.50 | 0.70 | 1.800 | 55 | 1000x2000 | DKP0306050710 |
| 3.00 x 6.00 x 0.50 x 0.80 | Aluminum | 3.00 | 6.00 | 0.50 | 0.80 | 0.700 | 49 | 1000x2000 | ALU0306050810 |
| 3.00(3.70) x 6.00 x 1.00 x 1.00 | Mild Steel | 3.70 | 6.00 | 1.00 | 1.00 | 4.243 | 46 | 1000x2000 | DKP0306101010 |
