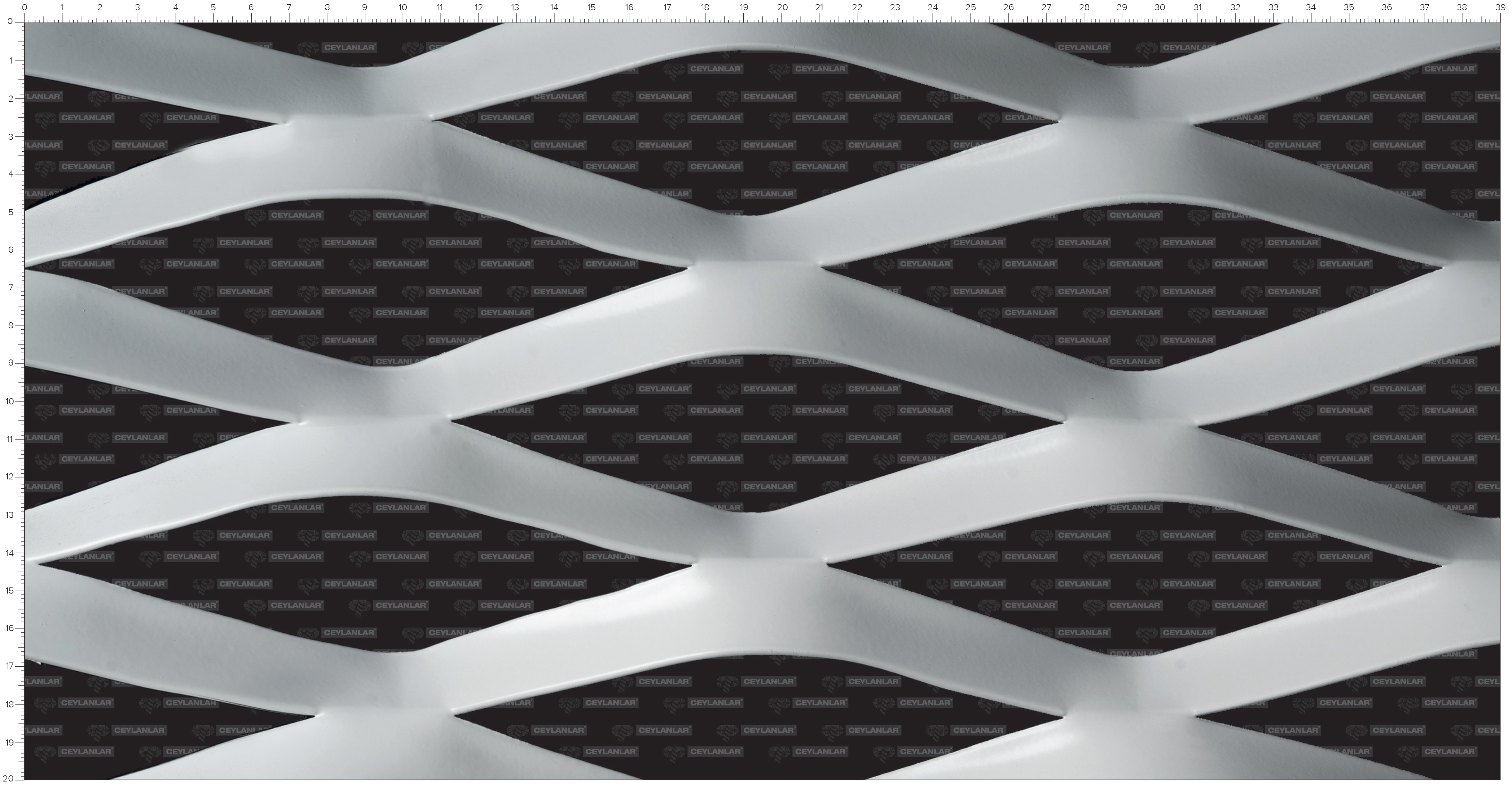

Our highly acclaimed product models are presented to you with two different material options. The product model, which has a 35% open area, awaits your review with aluminum and mild steel material options. Among large-pore meshes, it is one of the most commonly used models. This model is primarily used in airports and shopping malls.
| Product Code SWD x LWD x T x SW (mm) |
Material | SWD Short Way (mm) |
LWD Long Way (mm) |
T Thickness (mm) |
SW Strand Width (mm) |
Weight (kg/m2) |
Open Area (%) |
|---|---|---|---|---|---|---|---|
| 78.00 x 200.00 x 1.50 x 25.00 | Mild Steel | 78.00 | 200.00 | 1.50 | 25.00 | 6.038 | 35 |
| 78.00 x 200.00 x 2.00 x 25.00 | Aluminum | 78.00 | 200.00 | 2.00 | 25.00 | 2.800 | 35 |
| 78.00 x 200.00 x 3.00 x 25.00 | Aluminum | 78.00 | 200.00 | 3.00 | 25.00 | 4.200 | 35 |
